Low Voltage Electrical Systems

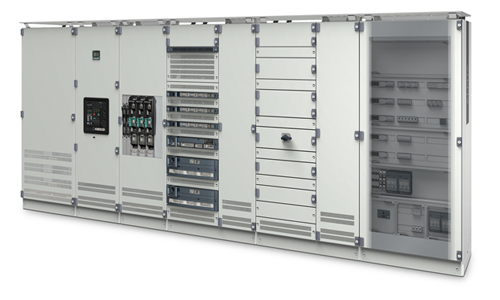

Direct On Line Solutions

• Complete range of standard starters.
• Isolator Stations.
• Junction Boxes.

• Complete range of standard starters.

• Complete range of standard starters.

• SANS 10142.

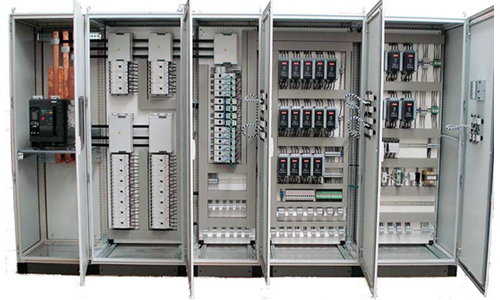

• Main & sub distribution boards.
• From 380V to 690/1000V.
• Up to 6200A.

• Steelwork & Copperwork.
• IEC 61439 Compliant.
• IEC 61641 Compliant.
• From 380V to 690/1000V.
• Up to 4000A,65kA/1s, Int.Arc 65kA/300ms.
• Up to IP54, Form 3b/4a.

• From 380V to 690V.
• Up to 5000A Main busbar,1090A Vertical busbar.
• Short time withstand (1s) 50/80kA - 480V.
• Degree of protection IP42, Form 3b & 4b.

• AGE Technologies has been extensively involved in large electrical reticulation projects both urban and rural environments(involving both overhead and underground).

Low Voltage Electrical Services

Low Voltage Electrical Components

Switchgear

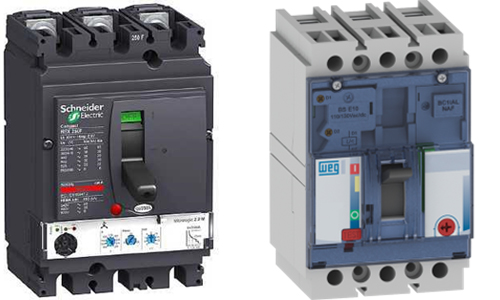

Moulded Case Circuit Breakers

• Rated currents from 16 to 1600 A.
• Short circuit breaking capacity of up to 80 kA (380/415 V).
• Moulds with fixed and adjustable thermal and magnetic units.

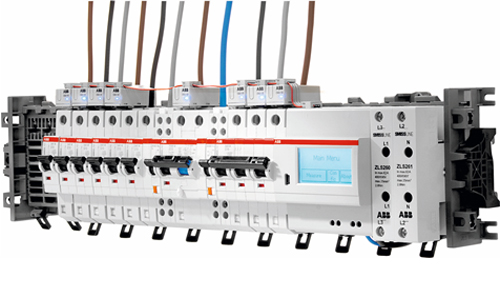

• Rated currents from 2 to 125 A tripping characteristic curves B and C.
• MCB in 1, 2, 3 and 4 poles.
• Short-circuit breaking capacity: 3/10 kA IEC 60809 (residential).
• 510 kA IEC 60947-2 (industrial).

• Rated currents up to 6 300A.
• Short-circuit breaking capacity of up to 120 kA (380/415 V).
• Standard trigger unit with LSIG protection.
• Fixed and withdrawable versions.
• Complete range of accessories.

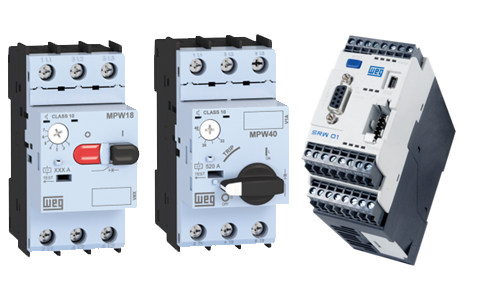

• Starting and protection for motors up to 18.5 KW / 25 HP at 380/415 V.
• Adjustable thermal release for overload protection up to 100 A.

• Smart relay.
• Reliability and precision on monitoring, operation and protection of LV electronic motor.
• Compact and modular concept.
• Full motor protection and monitoring through current and voltage measurements.
• Multiple operating modes including PLC functions.

• Designed and tested according to IEC 60269 for currents from 2 to 1 000 A.
• AR classes, NH type: protection against short-circuits in semiconductors / electronic equipment up to 690 V ac.

• Contractors and overload relays.
• Complete line from 9 to 800 A.
• Direct mounting of contractors to overload relays up to 105 A.
• Large accessary range.

• CE Certified.
• UL Certified.
• IEC Compliant.
• Any motor application from 3 A to 2160 A.

• CE Certified.
• UL Certified.
• IEC Compliant.
• 0.55 to 5600 kW.

• Type 1 to Type 3.
• IEC Compliant.
• Devices for installation in residential, and industrial environments.

• Single Phase Line Chokes.
  • Single phase input reactors, used to reduce harmonics.
• Three Phase Line Chokes.
  • Three phase input reactors, used to reduce harmonics.
• Motor Chokes.
• Three phase output reactors, used with long or multiple motor cables.
